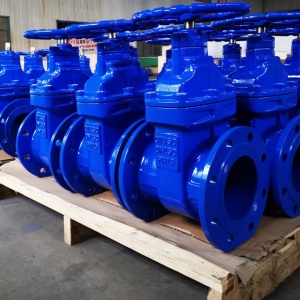

Wedge Gate Valve

Category： Wedge Gate Valve
Product description：

INQUIRY

ACEV Flow Control excels in producing forged and cast-body, bolted bonnet OS&Y gate valves, featuring a diverse range of materials, trim options, packing types, sizes (from 1/2" to 48"), and pressure classes (150LB to 2500LB). The mechanical attributes of ACEV's wedge gate valves render them perfect for bi-directional flow control applications, ensuring minimal turbulence and pressure drop during full system opening and closing.
These valves adhere to API 600, API 602, and B16.34 standards, while their face-to-face and end-to-end dimensions comply with ANSI B16.5 and B16.25 specifications. In wedge gate valves, the closing mechanism is a wedge-shaped gate with flat sealing surfaces. The wedge's design intensifies surface pressure on the sealing surfaces upon tightening, enhancing sealing performance.
The wedge itself can be split, solid, or flexible. A split wedge, comprising two parts, ensures tight closure even under light torsion or varying temperatures. Flexible wedges feature grooves that allow slight bending under high pressure, aiding in valve opening. Conversely, solid wedges, devoid of such grooves, are compact and suited for short-structured valves and larger sizes.
ACEV presents an extensive portfolio of wedge gate valves tailored to various needs:
In terms of bonnet types, ACEV offers bolted bonnet (BB), welded bonnet (WB), and pressure seal bonnet (PSB) gate valves, each suited for distinct applications.
Regarding wedge types, both solid and flexible wedges are available, catering to diverse sizes and design specifications.
Furthermore, ACEV provides both forged and cast bodies to fulfill the requirements of different applications and standards.
All these valve types are meticulously designed and crafted to meet the diverse demands of industries such as energy, petroleum, LNG, hydrogen, chemicals, coal chemicals, pulp & paper, and water treatment.

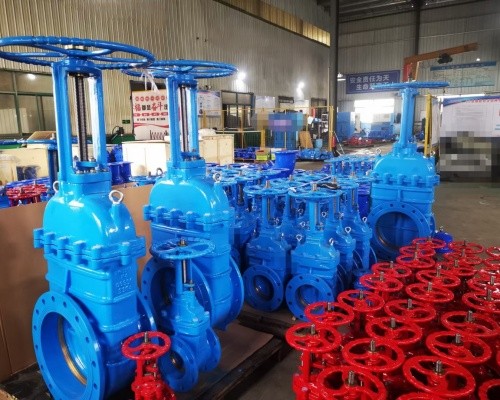

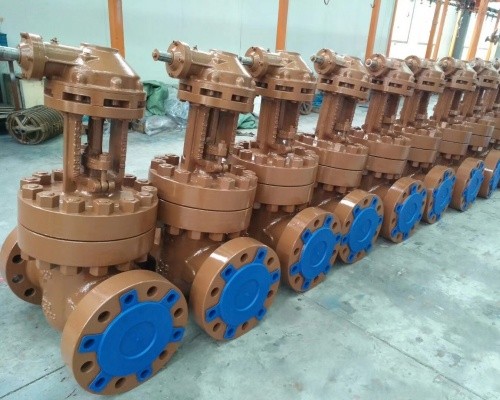

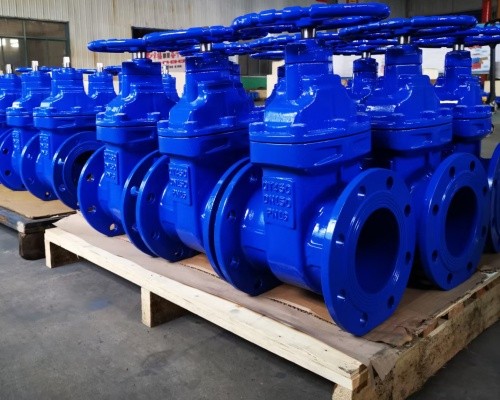

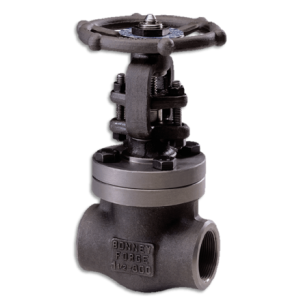

Forged Gate Valve
ACEV Flow Control stands as a trailblazer in the forged gate valve market. Our manufacturing prowess extends to API 602 Forged Gate valves, covering sizes from 1/4" to 4" and ANSI Pressure classes ranging from 150# to 4500#. Constructed from premium materials such as Carbon Steel, Stainless Steel, Duplex, Alloy, and other specialty materials, our valves are built to last.
ACEV's comprehensive forged gate valve portfolio boasts a variety of designs, including bolted bonnet (BB), pressure seal bonnet (PSB), extended bonnet (ideal for cryogenic applications), and bellow seal bonnet, suitable for low to high temperature and pressure environments where space and weight optimization are paramount.
To ensure prompt delivery, ACEV maintains a substantial inventory of these valves in the most commonly used trims within the industry.

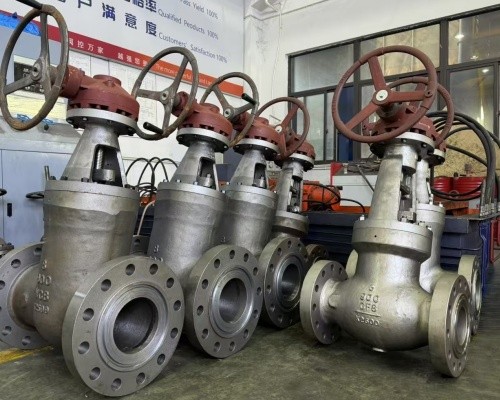

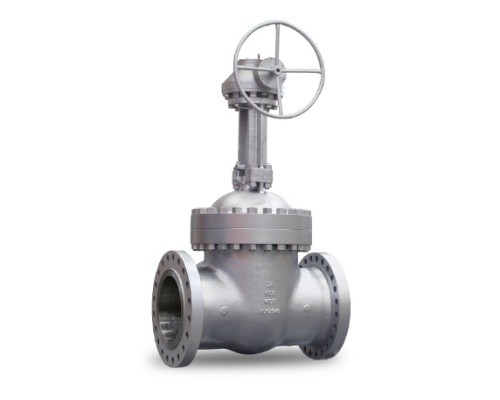

Cast Gate Valve

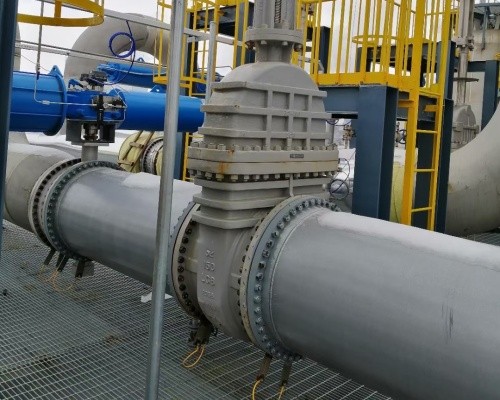

ACEV cast gate valves excel in installations within refineries, petrochemical facilities, chemical plants, and oil industry processes, as well as other environments prone to corrosion, erosion, or requiring flow redirection.
These valves are versatile and compatible with a wide array of actuation methods, including handwheel/bevel gear, electric motor actuation, pneumatics, and hydraulics.
Their design, proven through thousands of installations globally, undergoes continuous refinement and perfection. As a result, they boast numerous unique features and benefits.

Corrosion Resisting Gate Valve
ACEV's corrosion-resistant cast stainless steel gate valves adhere to the design specifications of API 603 and ASME B16.34. They come in both bolted bonnet and welded extended (cryogenic) bonnet styles.
The ACEV product line boasts a lightweight design, available in ANSI classes 150, 300, and 600#, with sizes ranging from 2” to 24” in nominal diameter. This diverse range offers end-users a variety of valves tailored to their needs. These valves are crafted according to API-603 design standards for gate, globe, and swing check valves.
Yaap gate valves excel in providing a tight shutoff and are widely used in numerous applications for bidirectional fluid flow isolation.

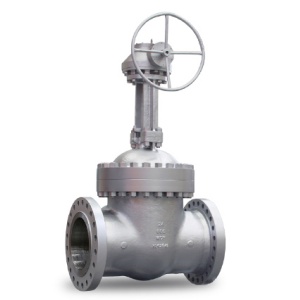

Pressure Seal Gate Valve
Pressure seal gate valves are specifically engineered for high-pressure applications. Among the most prevalent types for such purposes are the flexible wedge and parallel slide pressure seal valves. These valves typically feature cast or forged bodies, spanning dimensions from 1/2 to 24 inches, and pressure ratings ranging from 900# to 4500#. They are equipped with socket weld or buttweld ends to ensure robust, tight flanged joint connections, although flanged ends are also an option.
ACEV specializes in manufacturing pressure seal valves, including gate, globe, and swing check designs, all in accordance with API 602, ASME B16.34, API 600, or ISO 10434 standards.
Our Forged Pressure Seal Valves incorporate a pressure seal bonnet designed to enhance sealing performance as pressure increases. These valves are ideal for high-temperature and high-pressure applications, such as steam systems, where superior sealing characteristics are crucial at elevated pressures.

Ranges:
·Sizes: 1/2" to 24" (DN15 to DN600)
·Pressure Ratings: ASME CLASS 900 to 2500 (PN150 to PN420)

Construction Highlights:
·Pressure seal bonnet (PSB) for superior sealing performance
·OS&Y stem with non-rotating rising stem for smooth operation
·Bi-directional design ensures tight shut-off
·Wedge options: flexible or solid
·Bore options: regular or full
·End connections: flanged (RF, FF, RTJ, etc.), butt-welded (BW), socket-welded (SW), and threaded
·Operation methods: handwheel, gear, or actuator (pneumatic, electric, hydraulic)
·Renewable seat for extended service life
·Body materials: Monel, Inconel, Hastelloy, Incoloy, Duplex & Super Duplex, Carbon Steel, Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, etc.

Compliance & Standards:
·Designed according to API 602, API 600, ISO 10434, MSS SP 144, and ASME B16.34
·Flanged end dimensions conform to ASME B16.5
·Butt-welded end dimensions adhere to ASME B16.25
·Socket-welded end dimensions meet ASME B16.11
·Threaded end dimensions comply with ASME B1.20.1
·Face-to-face dimensions in accordance with ASME B16.10, EN558, JIS B2002, and MSS SP72
·Pressure-temperature ratings in line with ASME B16.34
·Mounting pad (top flange) conforms to ISO 5211
·Inspection and testing protocols in accordance with API 598, API 6D, EN12266, MSS SP82, and ISO 5208
·Fugitive emission standards: ISO 15848, API 624, and API 641
·Firesafe certifications: API 607, API 6FA, and ISO10497

Optional Features:
·Extended bonnet
·Bellow seal
·Vacuum function
