Double Ball Valve

Category： Double Ball Valve
Product description：

INQUIRY

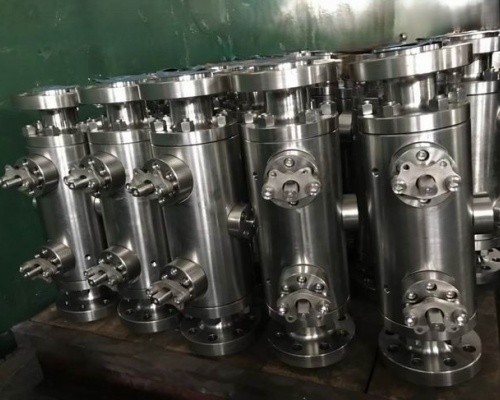

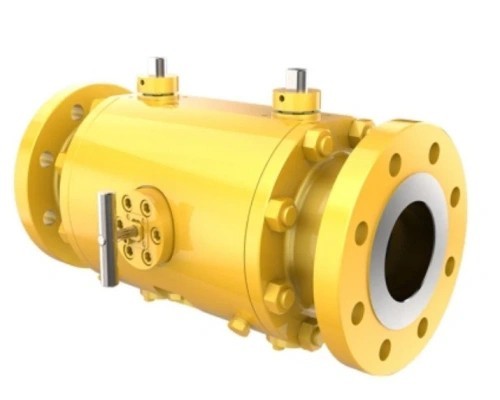

ACEV double ball valves integrate two inline isolation valves within a singular body, complemented by a bleed valve that facilitates the drainage or venting of fluid trapped between the obturators. This design ensures unparalleled safety in double isolation and bleed operations.
Opting for a double ball valve instead of two separate units offers notable advantages: it conserves weight and space in piping layouts, and significantly minimizes the risk of atmospheric leakage, thereby reducing hazards associated with liquid or gas transfers.
Moreover, these valves boast several distinctive features tailored to tackle harsh offshore conditions. Material choices can be fully customized to align with customers' project specifications, ensuring advanced technical solutions tailored to demanding environments.
ACEV's double ball valve design offers a distinct advantage: two valves seamlessly integrated into a single, robust body. This eliminates potential leakage paths, minimizes the need for end connections, and maximizes space and weight efficiency.
The design ensures double isolation and provides genuine double block and bleed functionality, offering reassurance through rigorous safety and seat integrity checks. This is achieved by utilizing two physical barriers to maintain pressure when operating downstream of the closed valve.

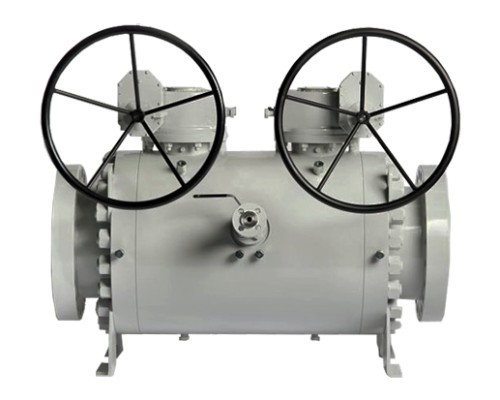

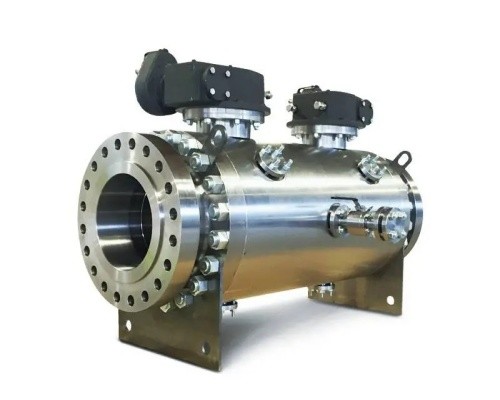

ACEV's double ball valves are primarily available as Full Bore Valves, but a Reduced Bore Design is also an option. Both the Primary and Secondary Isolation Valves are standard ball-type valves, featuring either a Floating Ball or Trunnion Ball Design. The bleed valve can be an integral needle-type valve with a screwed or flanged bonnet, or it can be a flanged valve such as a ball valve, Double Block & Bleed Valve, or Monoflange.

Floating DBB Compact Manifo

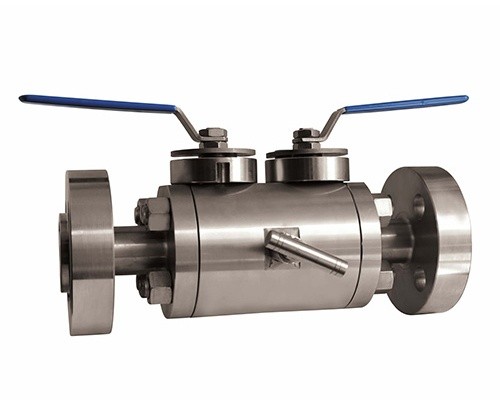

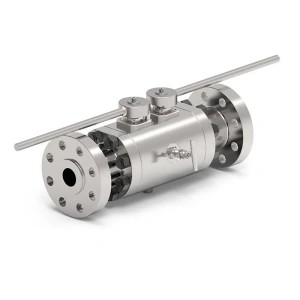

ACEV's floating DBB compact ball valves seamlessly integrate two inline isolation valves with a bleed valve, efficiently draining or venting trapped fluid between the closure elements to ensure safe downstream pipe isolation. These valves are ideally suited for process instrumentation control panels, providing isolation, pressure, and flow control in a single, streamlined unit complete with a bleed port.
Our floating Double Block and Bleed Valve is a side-entry ball valve, featuring either a bolted or welded body construction, tailored for upstream, midstream, and downstream oil and gas applications. Available in full or reduced port configurations, each quarter-turn ball valve incorporates built-in stops and is rated up to 2500LB, ensuring robust performance and reliability.

Ranges:
·Size: 1/2" to 12" (DN15 to DN300)
·Pressure Rating: ASME CLASS 150 to 2500 (PN16 to PN420)

Construction Highlights:
·Split Body Design (Side or End Entry)
·Full Bore or Reduced Bore Configurations
·Long or Short Pattern Options
·Anti-static, Blowout-proof, and Fire-safe Designs
·End Connections: Flanged (RF, FF, RTJ, etc.), BW, SW, Threaded
·Operation Mechanisms: Lever, Gear, Actuator ( Pneumatic, Electric, Hydraulic)
·Seating Options: Soft Seated or Metal Seated
·Material Choices: Monel, Inconel, Hastelloy, Incoloy, Duplex & Super Duplex, Carbon Steel, Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, etc.

Applicable Standards Compliance:
·Design: EEMUA 182, ASME B16.34
·Flanged Ends: ASME B16.5
·Butt Weld Ends: ASME B16.25
·Socket Weld Ends: ASME B16.11
·Threaded Ends: ASME B1.20.1
·Face-to-Face Dimensions: ASME B16.10, EN558, JIS B2002, MSS SP72
·Pressure-Temperature Ratings: ASME B16.34
·Mounting Pad: ISO 5211
·Inspection & Testing: API 598, API 6D, EN12266, MSS SP82, ISO 5208
·Fugitive Emission: ISO 15848, API 624, API 641
·Firesafe: API 607, ISO10497

Product Features:
·Double Block and Bleed (DBB) Capability with Automatic Cavity Relief
·Double Ball/Twin Ball and Needle Valve for Efficient Draining and Bleeding
·Double Body Sealing for Enhanced Safety
·Minimal Pressure Loss

Optional Features:
·Extended Bonnet
·Handle Locking Mechanism
·Anti-Tamper Head Unit
·Top-Entry Design for Easy Access and Maintenance
